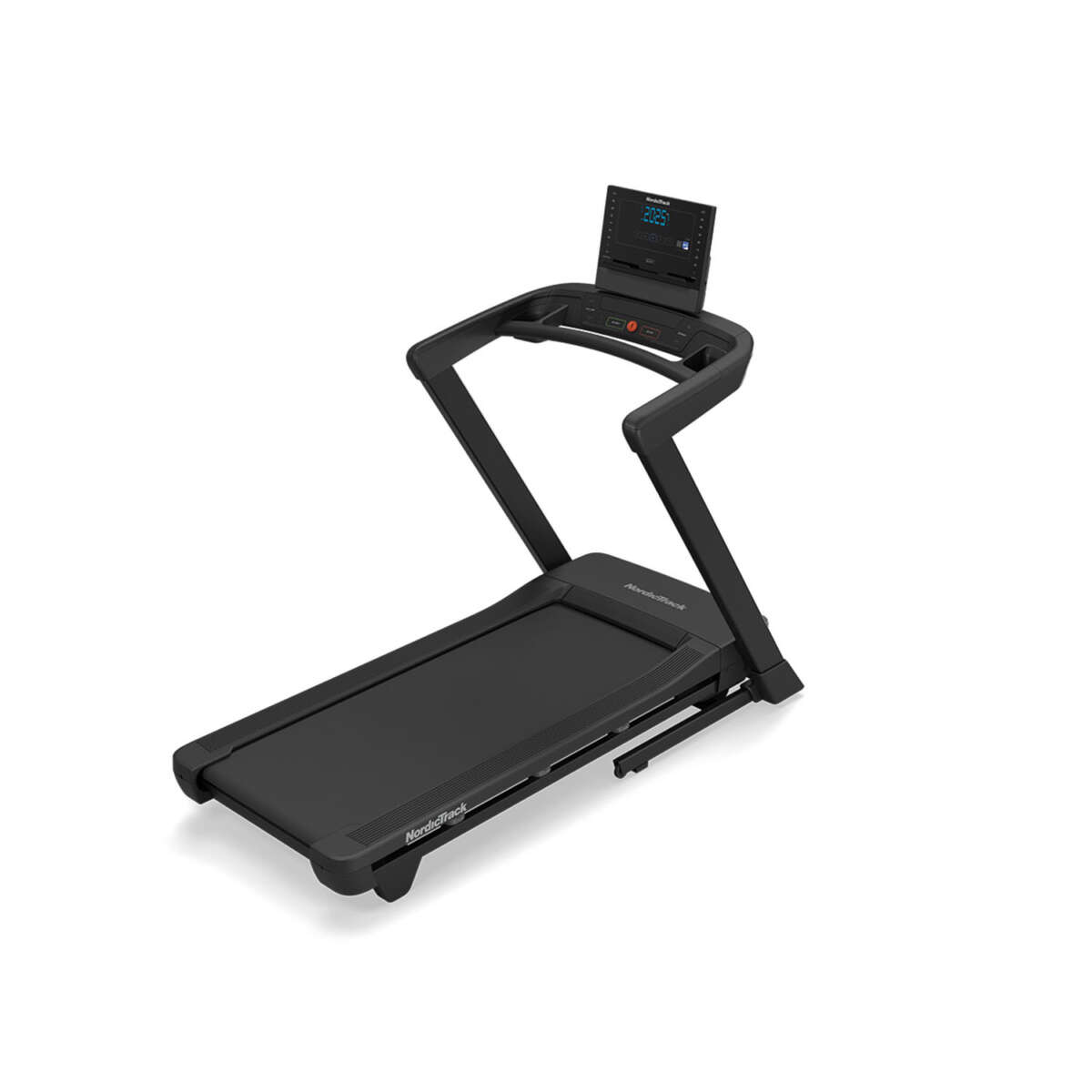

How To Disassemble A Nordictrack Treadmill: Step-By-Step

Unplug the unit, remove the console and screws, then lift parts off in order—safely and patiently.

I’ve taken apart many treadmills and walked dozens of people through this exact task. This guide shows step-by-step how to disassemble a nordictrack treadmill with clear safety rules, tool lists, and easy instructions. I explain common pitfalls, share real-world tips from hands-on experience, and give concise troubleshooting so you finish the job with confidence. Read on to learn how to disassemble a nordictrack treadmill the right way and avoid costly mistakes.

Safety first: what to know before you start

Working on fitness equipment can be risky. Always cut power and remove the plug before you touch anything. Use eye protection and gloves. Have a flat, clean workspace and a friend to help lift heavy parts.

Why this matters

• Electric parts can shock you if the machine is plugged in.
• The deck and motor are heavy and awkward to move alone.
• Small screws and springs can fly or get lost.

My top safety rule from experience: wait five minutes after unplugging before opening covers. Capacitors can hold a charge for a short time. Follow the manual’s warnings when you find them. If you feel unsure at any point, stop and get professional help.

Tools and parts you’ll need

Gather these before you begin. Having everything ready saves time and keeps the job tidy.

Essential tools

• Philips and flathead screwdrivers in several sizes.
• Socket set (metric and standard), including 8mm–19mm.
• Allen keys (hex wrenches) set.
• Needle-nose pliers and adjustable wrench.
• Torque driver or torque wrench (helpful for reassembly).
• Ziplock bags and labels for screws and small parts.
• Soft blanket or foam to lay parts on.
• A friend or two to assist with lifting.

Spare parts to consider

• Replacement belt, deck bolts, or console ribbon cables if damaged.
• Paper towels and rubbing alcohol for cleaning electrical contacts.

I always keep labeled bags for each section. It saved me hours when I reassembled a treadmill after cleaning the motor.

Step-by-step: how to disassemble a nordictrack treadmill

This is the detailed sequence I follow. Read each step fully before acting. The phrase how to disassemble a nordictrack treadmill appears here to keep your focus on the task and the ordering of steps matters.

Preparation

1. Unplug the treadmill and move it to a clear area.
2. Take photos of the console and wiring before you disconnect anything. Photos help when you reassemble.
3. Remove safety key and place it somewhere visible.

Console and upper shroud

1. Remove the console bolts. They are often on the underside or back of the console.
2. Carefully lift the console straight up. Watch for ribbon cables behind it.
3. Disconnect ribbon cables and short connectors by gently releasing clips. Label cables with tape.
4. Place the console on a padded surface.

Handrails and console mast

1. Remove the screws that attach the handrails to the mast. Keep screws in a labeled bag.
2. Slide the handrails off. Some models require a small bolt removed from inside the mast.
3. If your model has hydraulic assists, note their position and remove the retaining pin first.

Upper frame and shrouds
1. Remove plastic covers and shrouds by unscrewing visible fasteners.
2. Work around the frame and keep panels in order for easy reassembly.
3. If you run into a stubborn clip, check for hidden screws. Don’t use force.

Belt and deck area

1. Release belt tension using the rear roller bolts. Turn the tension bolts counterclockwise in small increments.
2. Mark the belt position relative to the rollers for reassembly.
3. Remove the belt by lifting it off the rollers and slipping it off the deck. If the belt is sticky or torn, wear gloves.
4. Remove the deck by unscrewing the deck mounting bolts that secure it to the frame.

Motor and motor cover

1. Remove the motor cover screws and lift the cover off.
2. Label and disconnect motor wires. Take photos for reference.
3. Unscrew the motor mount bolts. Support the motor as you remove the last bolts. The motor is heavy.
4. Lift the motor out carefully. Place it on a padded surface.

Rollers, incline motor, and electronics

1. Remove front and rear rollers if your work requires it. Note spacer placement.
2. Unscrew and remove the incline motor. Keep the bracket in order.
3. Remove the main control board if needed. Ground yourself before touching circuit boards to avoid static damage.

Frame and final disassembly

1. With the motor and deck removed, unscrew the main frame bolts. Have a helper hold the frame steady.
2. Disassemble the base and uprights as needed. Keep the order of parts logical for reassembly.

How to disassemble a nordictrack treadmill tip: work from top to bottom and keep matched bolts together. This will make reassembly far quicker and less frustrating.

My personal note: on one unit I did, the ribbon cable under the console was brittle. I replaced it to avoid headaches later. When you learn how to disassemble a nordictrack treadmill, expect to find wear in older models and plan spare parts.

Common issues, troubleshooting, and quick fixes

This section answers small problems you may meet while you learn how to disassemble a nordictrack treadmill.

Problem: Stuck screws

• Use penetrating oil and let it sit. Tap gently with a hammer to loosen.
• Use the correct size driver. Stripped heads need extractor tools.

Problem: Ribbon cable seems fused

• Clean contacts with rubbing alcohol and a lint-free cloth.
• Replace the cable if insulation cracks or wires are exposed.

Problem: Heavy motor awkward to lift

• Use a friend or a small hoist. Support from two sides to avoid drop.

PAA-style questions
Q: Can I disassemble a NordicTrack treadmill alone?
A: You can do many steps alone but heavy parts like the motor and deck need a helper for safety.

Q: How long does it take to fully disassemble a treadmill?
A: Simple partial disassembly can take 1–2 hours. Full teardown can take 3–6 hours depending on model and experience.

Q: Will disassembly void the warranty?
A: Often yes. Check the warranty first. If the unit is under warranty, contact the manufacturer or an authorized service provider.

Maintenance and reassembly tips

Reassembly often feels harder than disassembly. These tips will make it easier and help the treadmill run well afterward.

Reassembly order and torque

• Reinstall major parts in reverse order: frame, rollers, deck, belt, motor, shrouds, console.
• Tighten bolts to the recommended torque when given. Use a torque wrench when you can.

Belt alignment and tension

• Center the belt and adjust tension bolts evenly.
• Walk at low speed and test alignment before full use.

Electrical reconnections

• Match labeled cables to their photos. Check connectors for bent pins.
• Power the unit only after covers are back on and no tools remain inside.

Testing

• Test incline and speed slowly.
• Listen for unusual noise. Stop and inspect if you feel grinding or smell burnt components.

Personal experience tip: keep a reassembly log with photos and the bag of bolts for each step. I saved a day once by finding a labeled bag that matched a missing bracket.

Frequently Asked Questions of how to disassemble a nordictrack treadmill

How long does it take to disassemble a NordicTrack treadmill?

A simple disassembly can take 1–2 hours. A full teardown can take 3–6 hours depending on your skill.

Do I need special tools to disassemble a NordicTrack treadmill?

Basic hand tools usually work. A torque wrench, multimeter, and extractor set help with tougher jobs.

Will disassembling my treadmill void the warranty?

Often it will. Check your warranty policy. Contact support before disassembling if the unit is under warranty.

How do I avoid damaging the console ribbon cable?

Take photos and release clips gently. Use a flat plastic tool if needed and avoid bending pins sharply.

Can I replace the belt and deck myself after disassembly?

Yes, many users can replace belt and deck. Follow torque specs and alignment steps carefully for a safe rebuild.

Conclusion

You now have a clear, step-by-step plan for how to disassemble a nordictrack treadmill safely and effectively. Start with safety, gather the right tools, and work methodically from top to bottom. Label parts, take photos, and ask for help when lifting heavy items. Try one small section first to build confidence. If you hit a wall, a pro can save time and money.
